Auto Lensmeter
LM-7P/7

Features

  • Hartmann sensor with 108 measurement points
  • Automatic lens type detection
  • Scale mode function
  • UV transmittance measurement
  • Vertical 5.7-inch color LCD touch screen

Inquiry about This Product Find Distributor
Detailed Information
Downloads
Videos
Related Products

Detailed Information

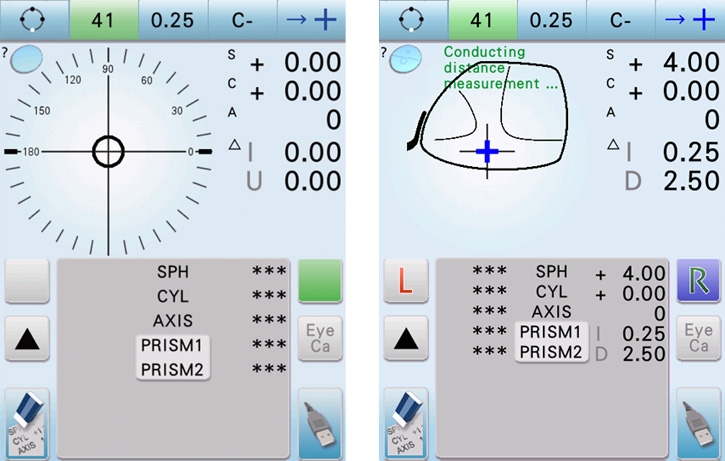

Hartmann sensor with 108 measurement points
The LM-7P/7 utilizes simultaneous measurement of 108 data points within the nosepiece. This advanced measurement principle allows faster and easier data acquisition with greater accuracy and reliability.



Automatic lens type detection
Placing the lens on the nosepiece activates the auto lens detection function to automatically determine the lens type and switch to the correct measuring mode.

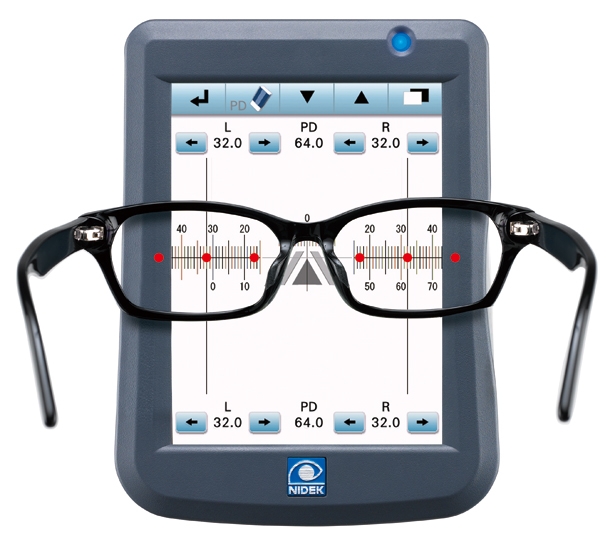

Scale mode function
Pupillary distance such as the LPD/RPD and PD, can be measured easily by aligning the marked glasses to the scale displayed on the screen. Screen color can be changed to black or white depending on marking color for greater visibility.

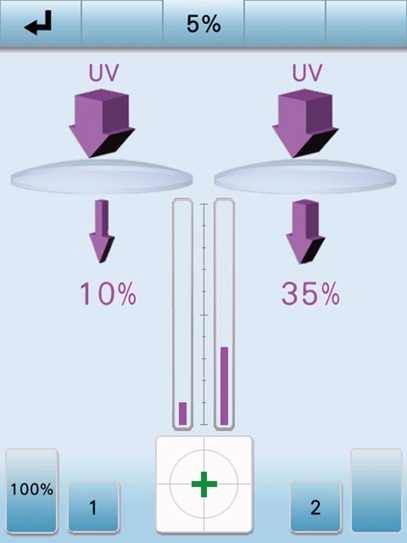

UV transmittance measurement
UV transmittance is presented as an intuitive display from 0 to 100% of central wavelength 365 nm (UV-A) in 1 or 5% increments.



Vertical 5.7-inch color LCD touch screen

The adoption of touch screen achieves ideal layout display, superior in operation and visibility. The unique vertical design gives a sophisticated impression and greater function.

Enhanced data communication capability

The LM-7 series has one RS-232C port and two USB ports as standard. Optional LAN/WLAN connections are also available, which greatly expand data communication capability.

Videos

Product Information

Quality from Development to Service



NOTE

The availability of products differs from country to country depending on the status of approval.
Specifications and design are subject to change without notice.
