Dry Tinting
High-Definition Gradient Tinting
Features

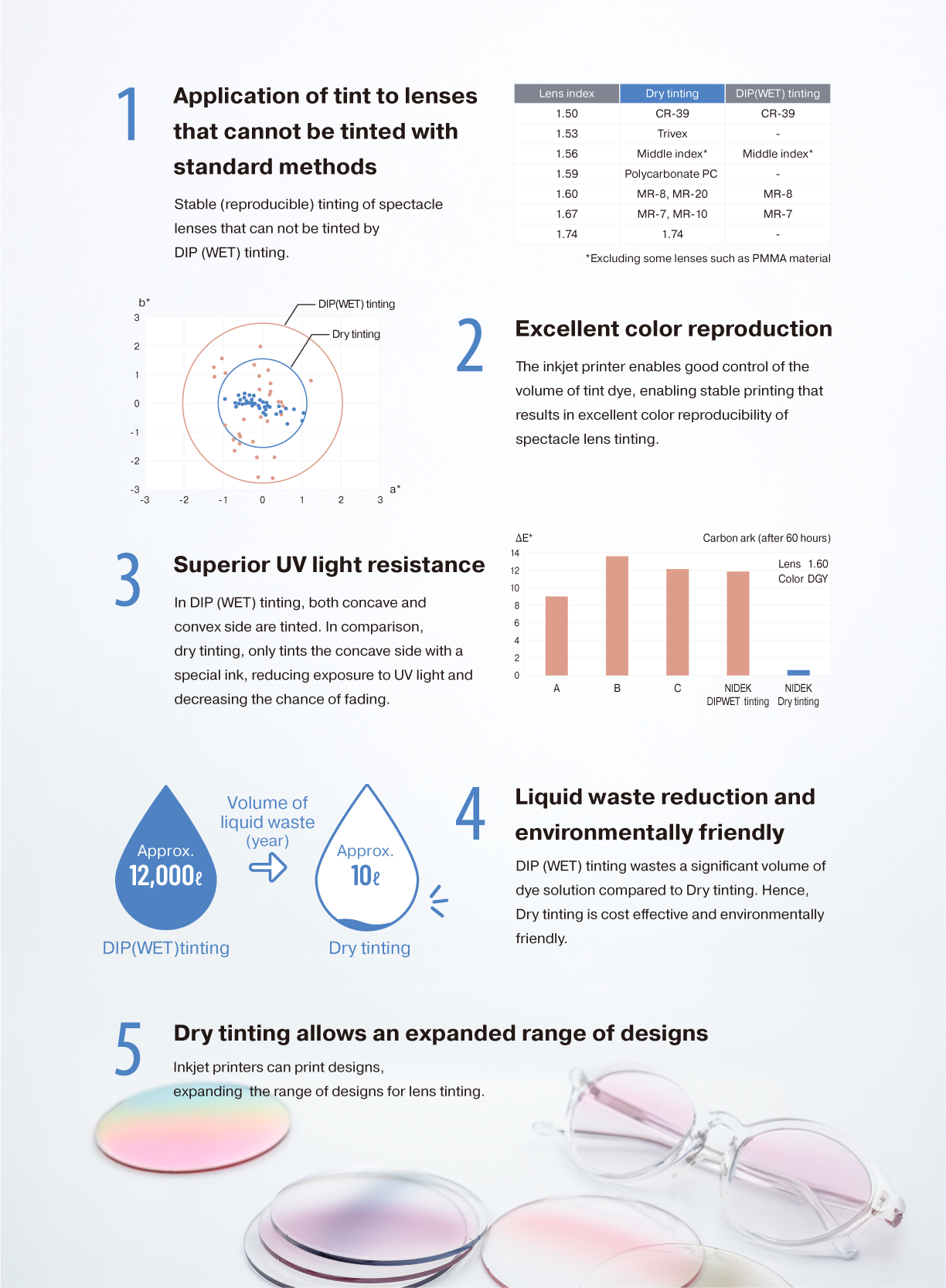

・Expansive application of "Dry Tinting", a unique tinting technology for spectacle lenses developed by NIDEK
・Gradient tinting and partial tinting capability on hard-to-dye substrates such as PC, PET and TPU
・Uniquely fine texture of gradation, hard to achieve with screen printing
・Adjustable gloss and transparency by combination with decorative mirror coating to enhance color variation
・Non-transmissive usage with black ink applied on back side
Detailed Information
Specification
| Item | Specification |
|---|---|
| Substrate Material | Thermoplastic resin (PC, PET, TPU and so on) |
| Maximum Size | 500 x 400 mm |
| Maximum Tinting Density | 90% *1 |
*1 The density is subject to tintability of substrate material.

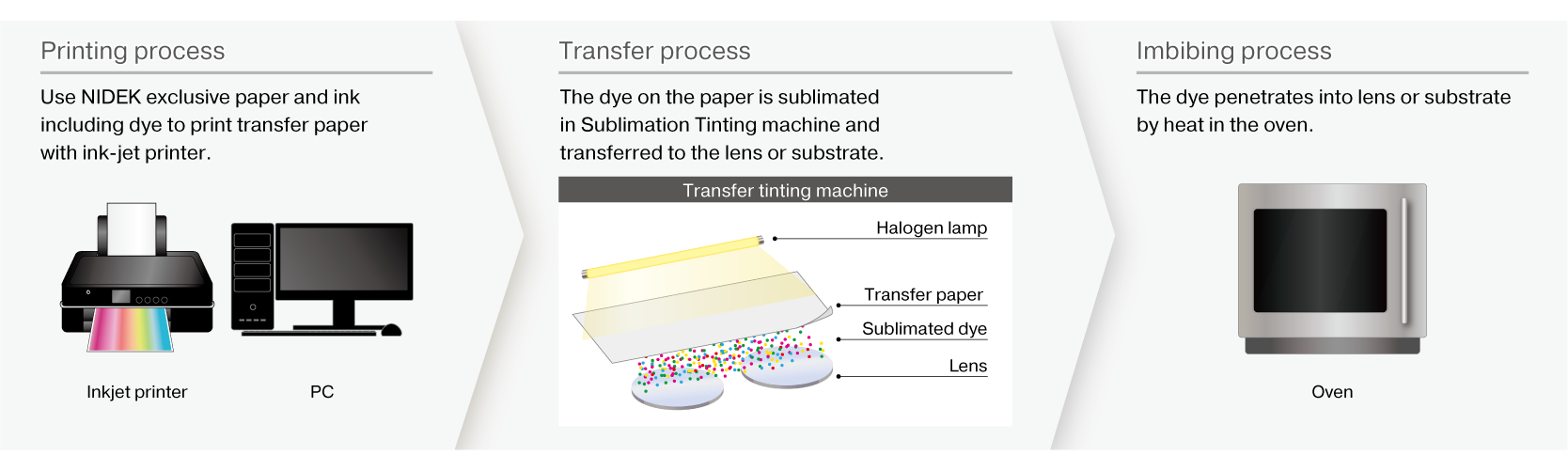

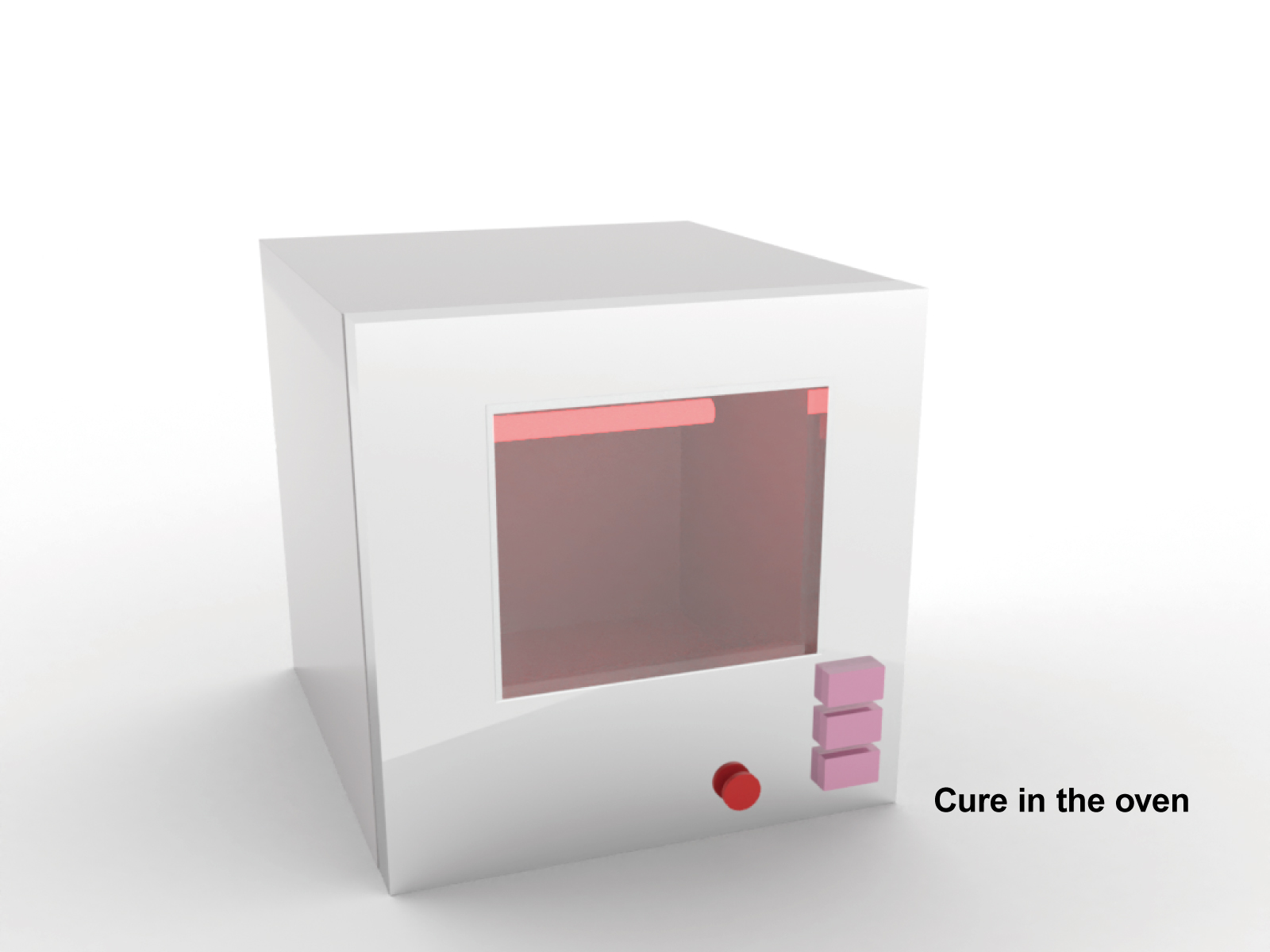

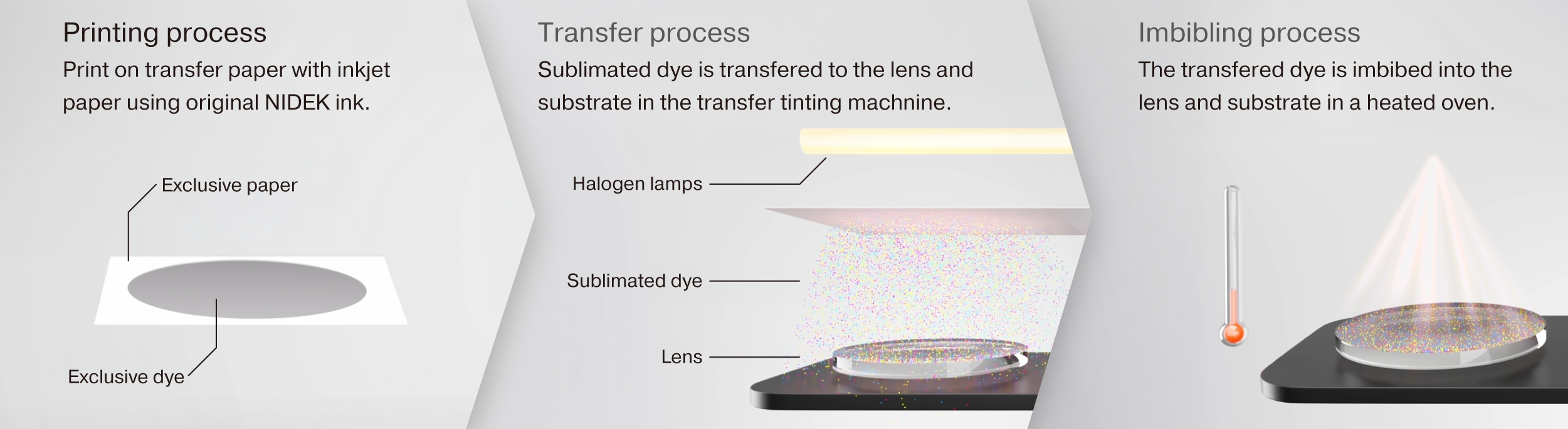

Tinting Process

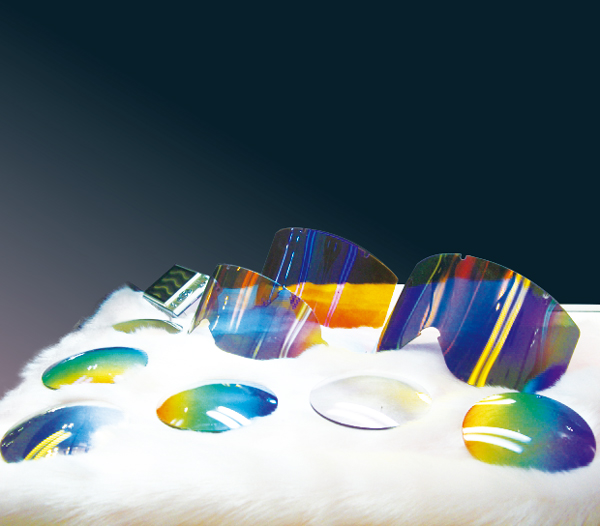

Applications
 |
 |

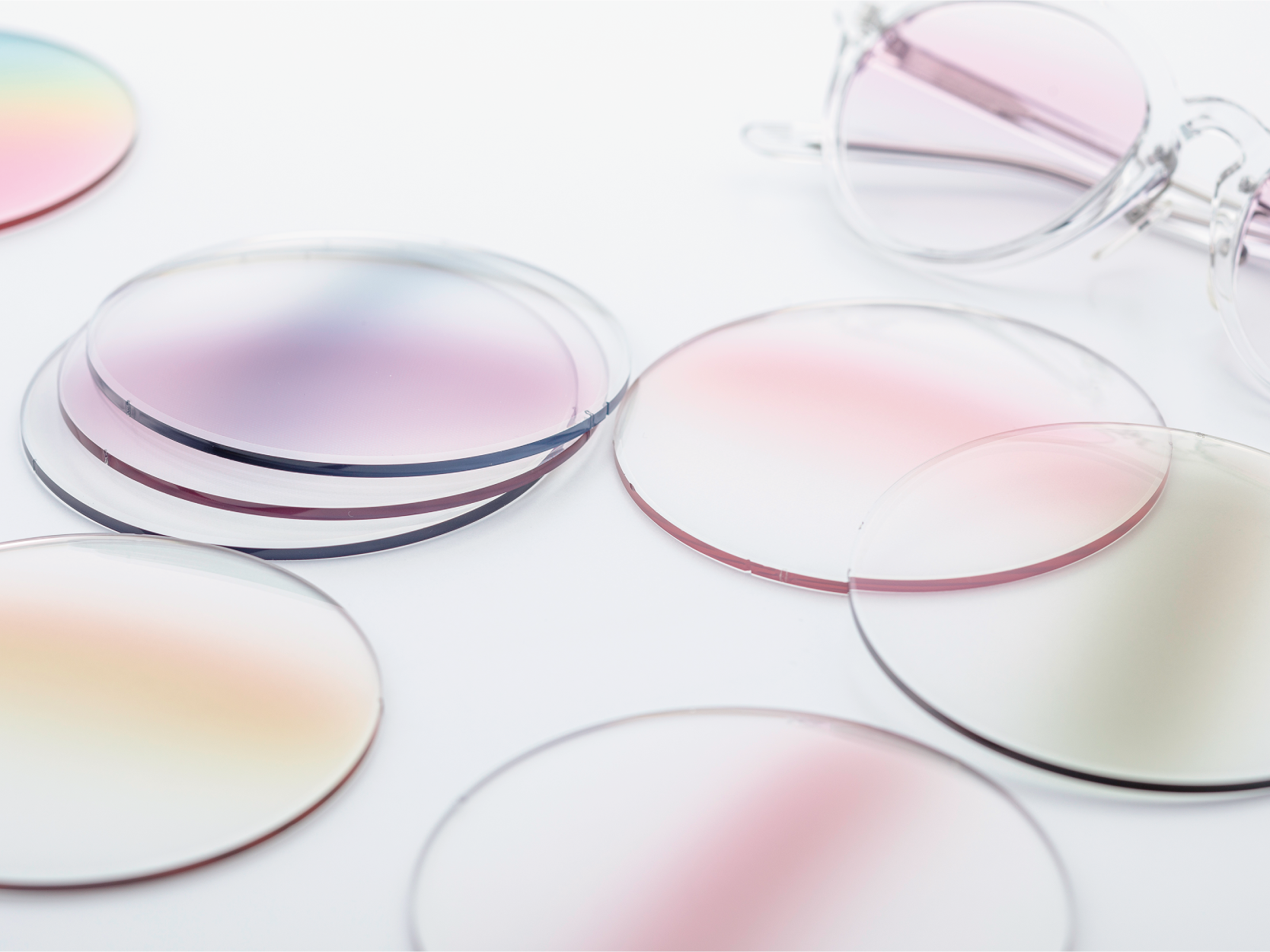

- Spectacle lens

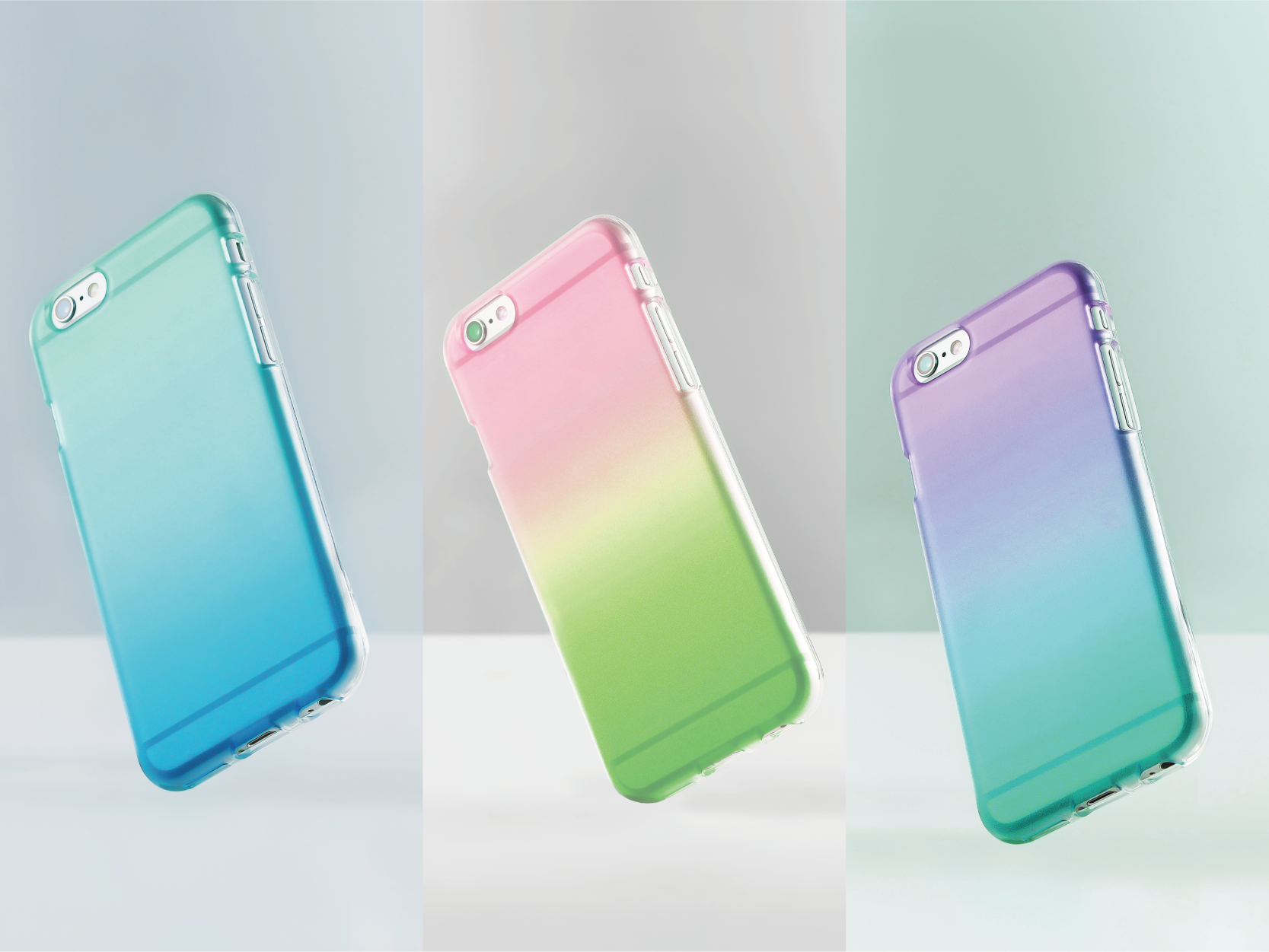

- Smartphone case
- Various case
*All the images used are for illustrative purpose only.
Brochure Request
For inquiries and brochure requests, please contact the following URL.
Related Products

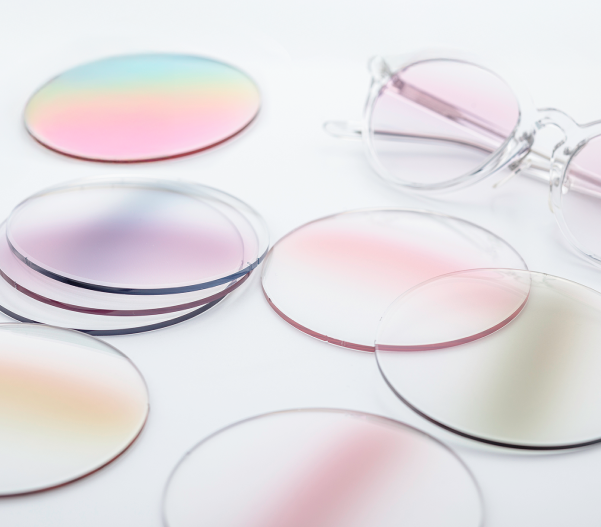

Coating Type (Dry Tinting)
Introduce our coating technology simply. These coatings are applicable to plastics. Please consider applying our coatings on your own products.
Dry Tinting |
What is the Dry Tinting?

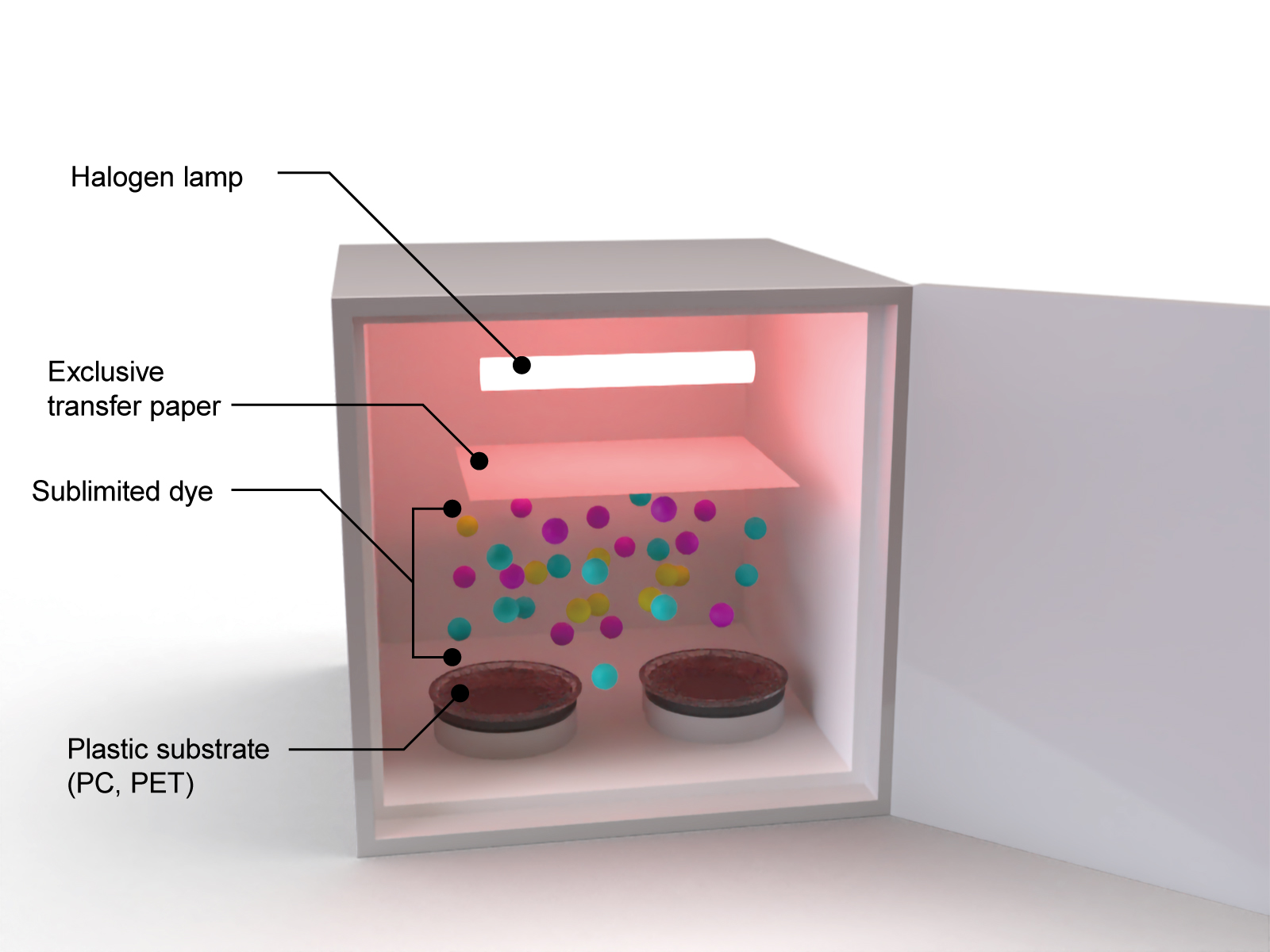

Dry tinting is our original technology. Design the required image and color freely by personal computer and print them on the exclusive transfer paper with exclusive dyes. On heating the substrate and transfer paper in dry tinting machine, the dyes on transfer paper are sublimated onto the substrate, and the image and color are finally realized on the substrate.
