Clear plastic film with high hardness and anti-smudge,
"Geofilm"
Plastic Film coated with Hybrid Hard Coating Material "Acier"
Features
・Excellent scratch and abrasion resistances
・Surface finish with "Acier" as high anti-smudge hard coating material
・PET film for standard type - PMMA, PC and other kinds of film on request
Detailed Information
Properties
| Item | Test Condition | Results | |
|---|---|---|---|
| Standard Type | High-Hardness Type | ||
| Hard Coating Thickness | Calculate from reflectance measured with Olympus USPM-RUⅢ |
10 μm | 20 μm or thicker |
| Transmittance | JIS K7361-1 (Measured with Haze Meter [NIPPON DENSHOKU, NDH5000]) |
91.0% or higher | 91.0% or higher |
| Haze | JIS K7136 (Measured with Haze Meter [NIPPON DENSHOKU, NDH5000]) |
0.5% or lower | 0.5% or lower |
| Adhesiveness | Crosshatch tape test (3 times) | Pass | Pass |
| Pencil Hardness | JIS K5600-5-4 (750 g load)*1 | 4H | 6H or higher |
| Scratch Resistance | Steel wool #0000, 500 g load | No scratch (20,000 strokes) |
No scratch (10,000 strokes) |
| Steel wool #0000, 1.0 kg load | No scratch (4,000 strokes) |
No scratch (2,000 strokes) |
|
| Steel wool #0000, 1.5 kg load | No scratch (2,000 strokes) |
No scratch (1,500 strokes) |
|
| Contact Angle | θ/2 method | 105° (Water) | 105° (Water) |
| 68° (Oleic acid) | 68° (Oleic acid) | ||
Substrate: Low interference PET film with 125 μm thick (Toyobo)
Film size: 1,500 mm (Maximun width)
Rear surface: Curl correction coating
*1 Evaluate with scratch only, but not with dent
* The data in the table are for reference, not guaranteed value.
 |
 |
*Feel free to ask for adhesive application or choice of adhesives.

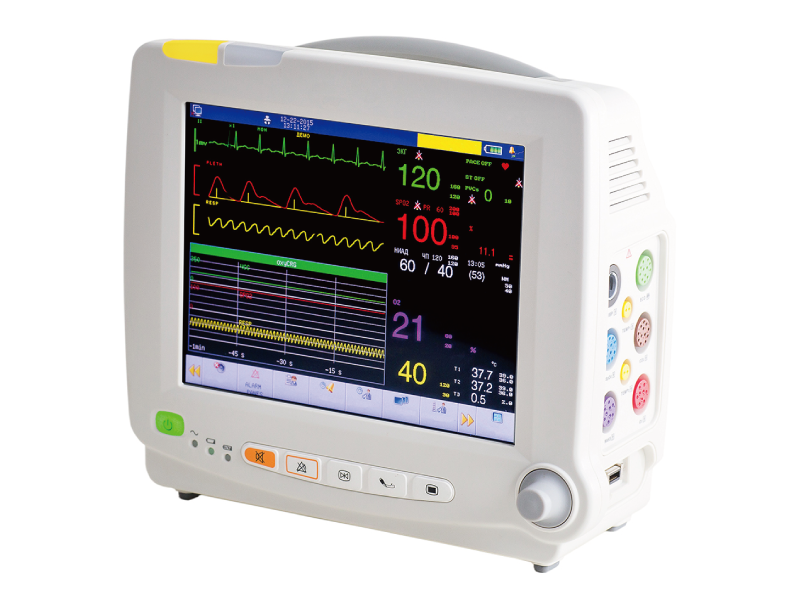

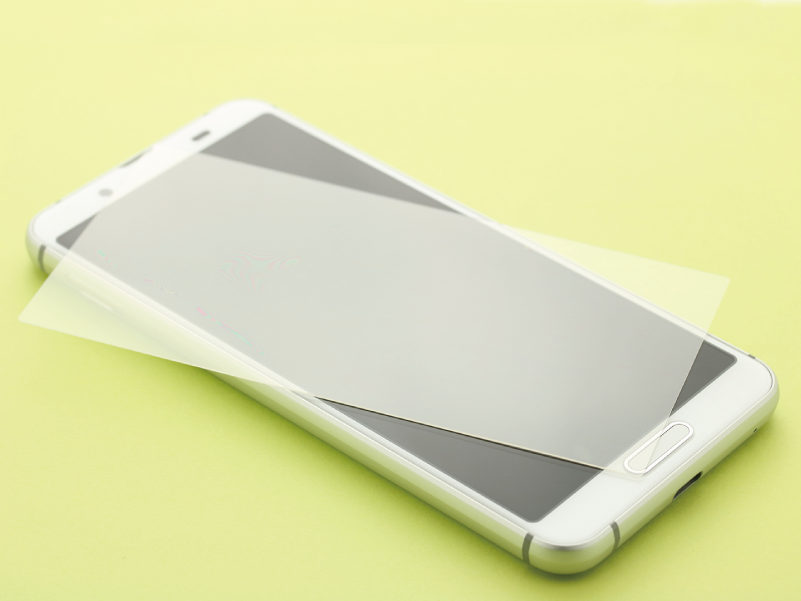

*All the images used are for illustrative purpose only.
