Preloaded IOL Injection System
NP-1/NP-1C

Features

  • Smooth injection
  • Simple two-step operation
  • Lower power IOLs available
  • Remarkable intracapsular stability

Detailed Information

Superior operability for enhanced surgical workflow

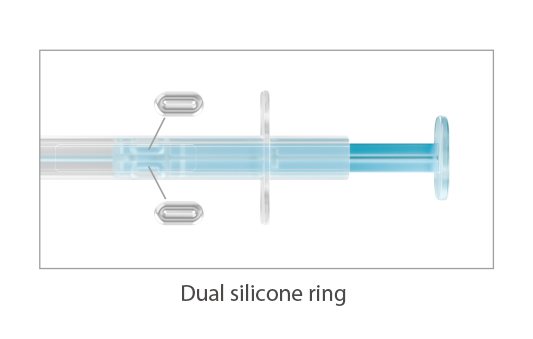

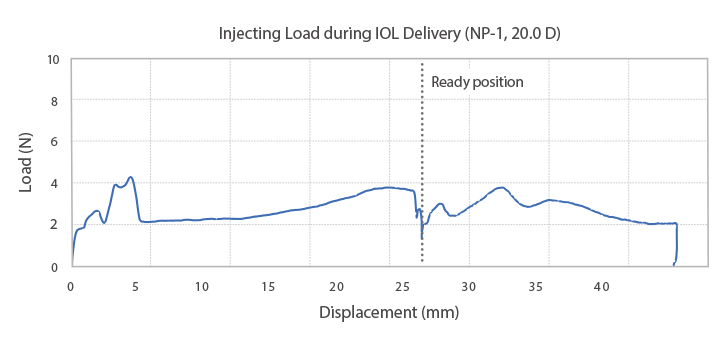

Smooth injection

The dual silicone ring on the plunger ensures optimal and constant resistance for performing a smooth injection. It minimizes sudden changes in resistance, allowing stable, consistent and safe IOL delivery.

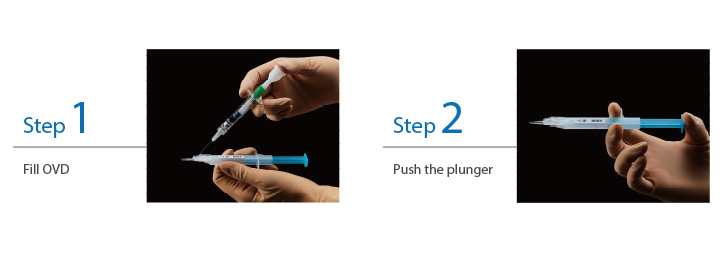

Simple two-step operation

The NP-1/NP-1C allows quick and easy operation using a simple two-step process. First, OVD is filled in the injector, and then the plunger is depressed (as one-handed operation, if desired). This fully-preloaded system eliminates loading the IOL in the cartridge by the surgeon.

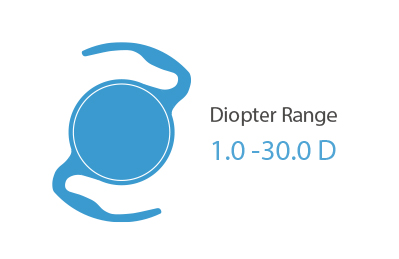

Lower power IOLs and toric lenses with the same gear

The NP-1/NP-1C and NP-T are available in a wide range of powers from 1.0 to 30.0 D, and they can all be delivered with the same system and the same technique.



Small incision – 2.2 mm

The NP-1/NP-1C can be implanted using a 2.2 mm incision at the corneoscleral junction, or a 2.4 mm clear corneal incision.

Lens design for the remarkable intracapsular stability

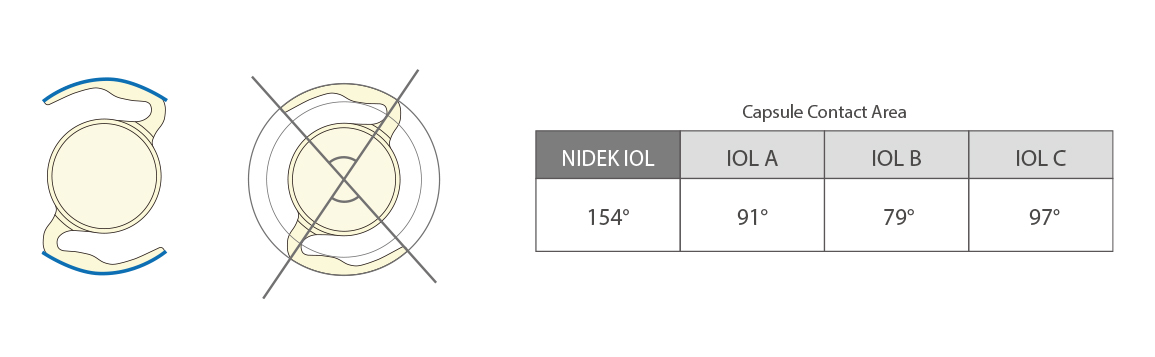

Wide contact area

An extremely wide contact area between the long haptics and the capsule enhances stability within the capsular bag.

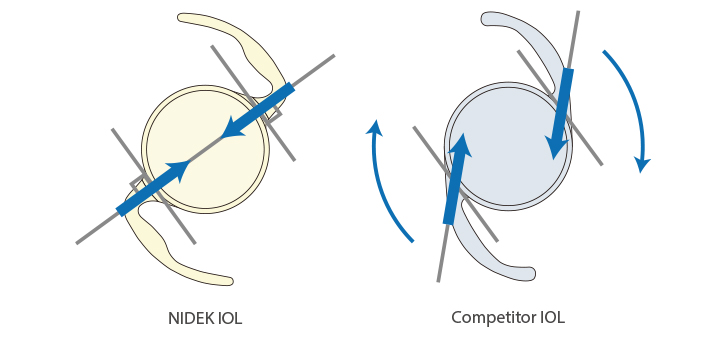

90° haptic design

The 90° haptic design maintains lens position and prevents rotation by evenly distributing the intra and extra-capsular pressure from capsular contraction or other postoperative changes.

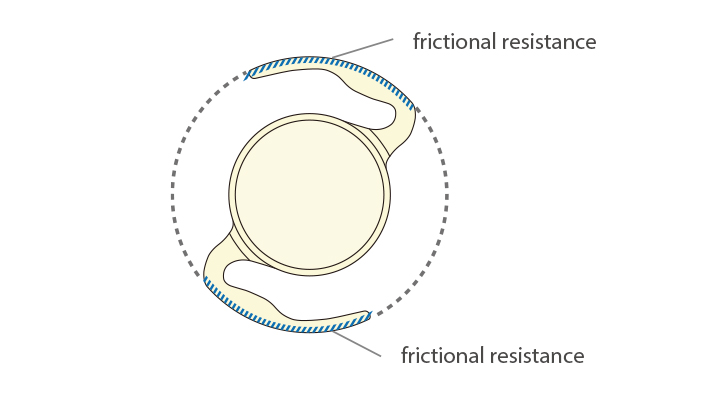

Asperitic side surface

The sides of the haptics are mildly abraded to increase frictional resistance in the bag for preventing rotation.



Postoperative complication control with optimized lens design

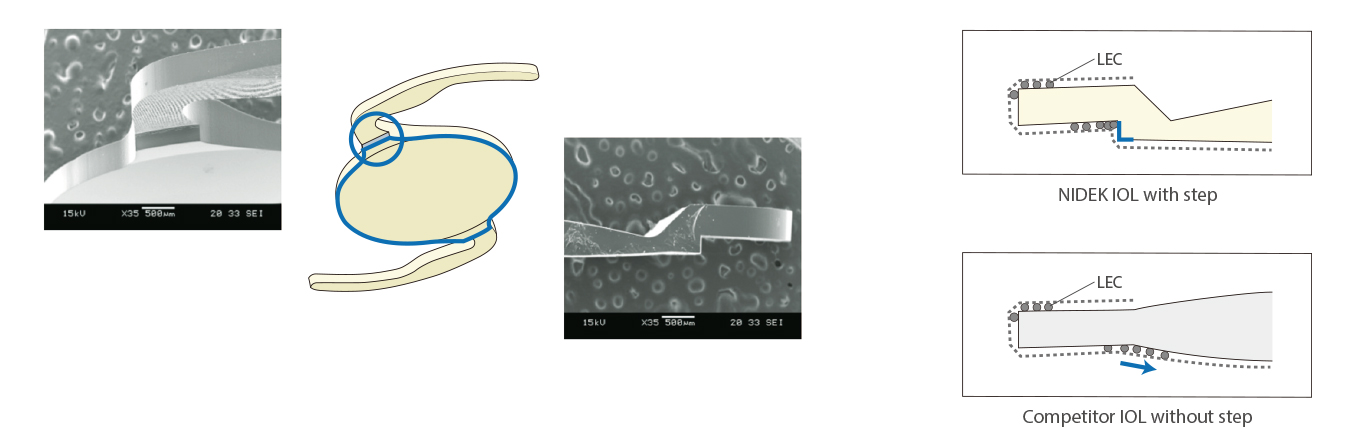

Prevention of PCO

True 360° sharp square edge effectively prevents posterior capsule opacification (PCO). Steps on the back of optic-haptic junctions prevent migration of lens epithelial cells (LECs).

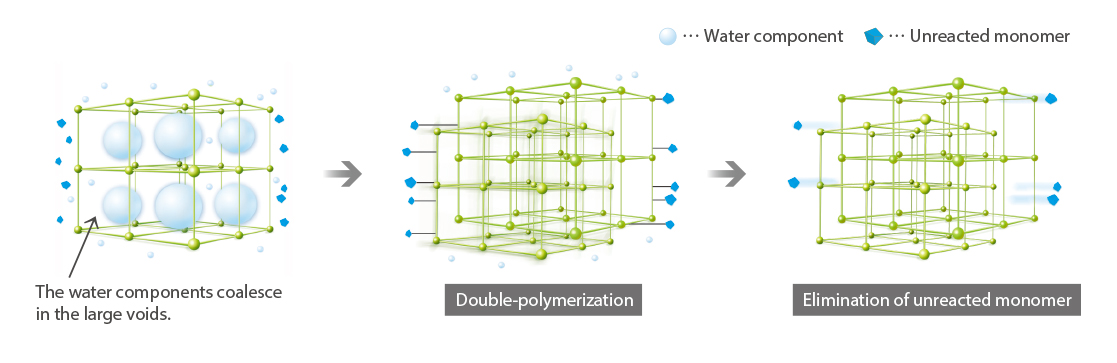

Long-term material stability

Double-polymerization and elimination of unreacted monomers during the lens manufacturing process decreases the chances of glistening and whitening.



Minimizing dysphotopsia

Asperitic optic side surface reduces intraocular reflection and optic edge glare.

Optic side surface





Quick and smooth unfolding

A slightly rough haptic surface reduces adherence to the optic surface during lens folding, allowing for quick and smooth unfolding after lens delivery.

Haptic surface



Tinting* and spherical aberration for clear, natural vision

An aspheric design and yellow tinting simulate the physiologic conditions of a young, adult crystalline lens, achieving clear, natural vision for all viewing conditions.



*Available for the NP-1.

Downloads

Specifications

Tinted model

Product name NexLoad NP

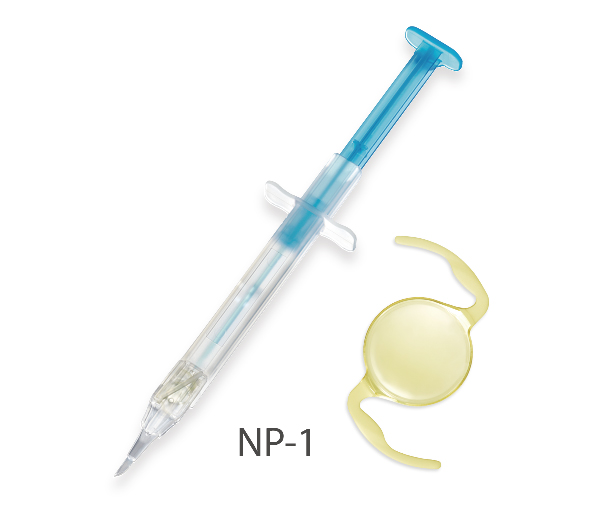

Model NP-1
Loaded lens Aktis SP (NS-60YG)
Diopter range 1.0 to 5.0 D (1.0 D increments)
5.0 to 27.0 D (0.5 D increments)
27.0 to 30.0 D (1.0 D increments)



Clear model

Product name NexLoad NP Clear

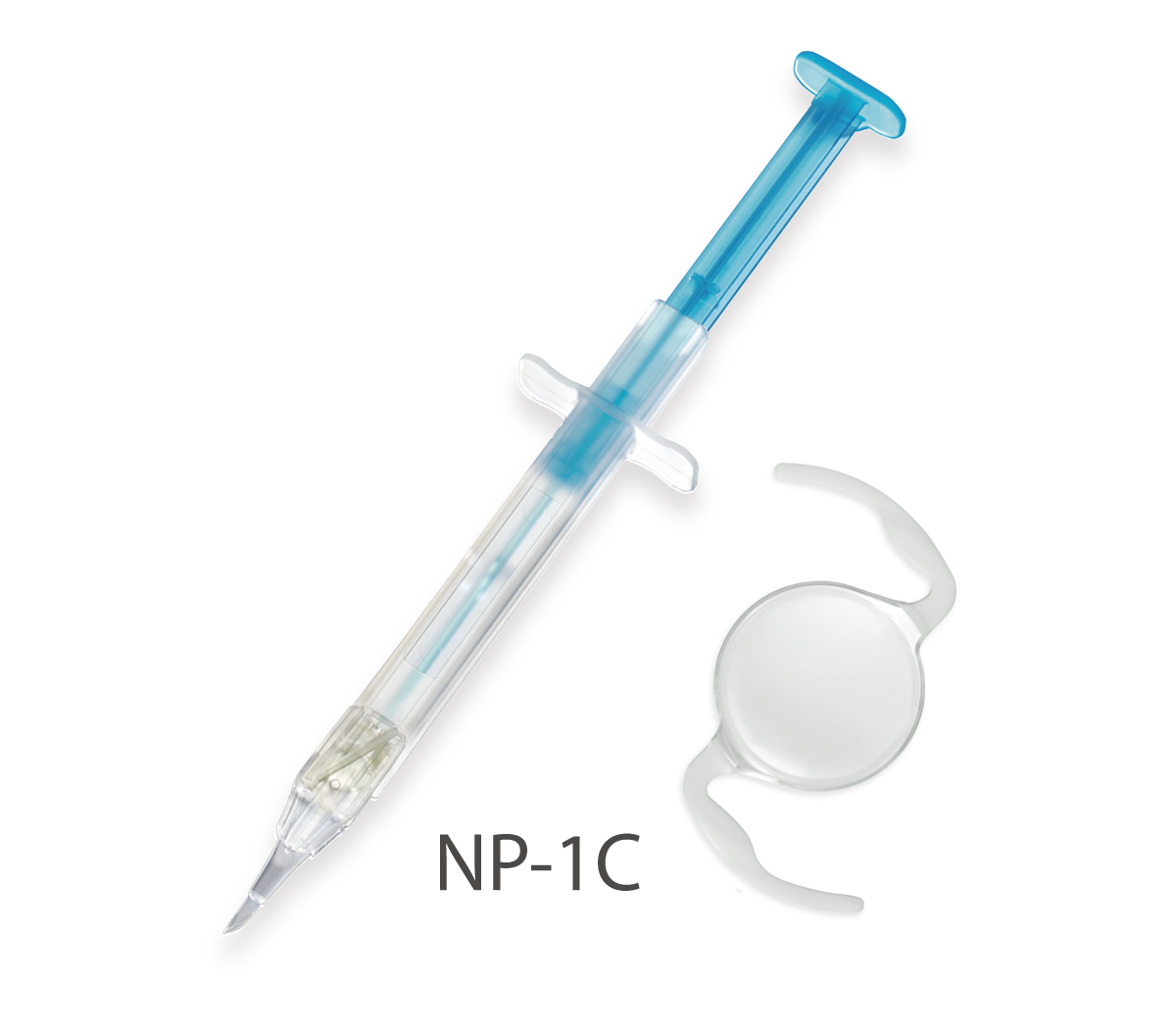

Model NP-1C
Loaded lens Aktis SP (NS-60G)
Diopter range 1.0 to 5.0 D (1.0 D increments)
5.0 to 27.0 D (0.5 D increments)
27.0 to 30.0 D (1.0 D increments)

Videos

Product Introduction

NOTE

The availability of products differs from country to country depending on the status of approval.
Specifications and design are subject to change without notice.
