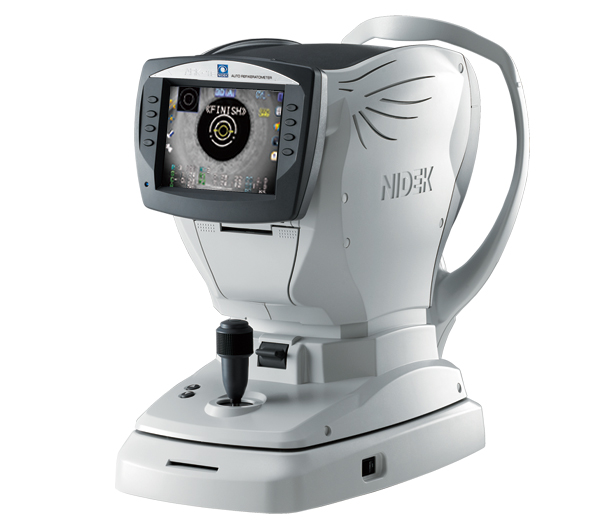

Auto Ref/Keratometer
ARK-1s/1a/1
Auto Refractometer
AR-1s/1a/1

Ophthalmology & Optometry Refraction Auto Refractometer / Auto Keratometer / Non Contact Tonometer / Pachymeter / Optical Biometer

Features

・Accurate refraction measurement
・Easy VA measurement with glare test
・Simple opacity assessment with retroillumination image
・Patient-friendly accommodation measurement
・Keratometry measurement with mire ring

Inquiry about This Product Find Distributor
Detailed Information
Related Products
Downloads
Videos

Detailed Information

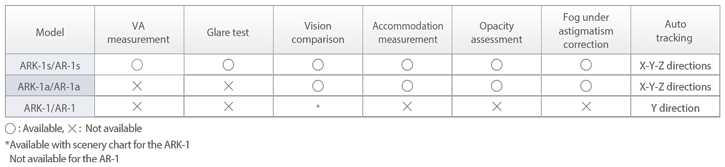

Selectable model types

Accurate refraction measurement

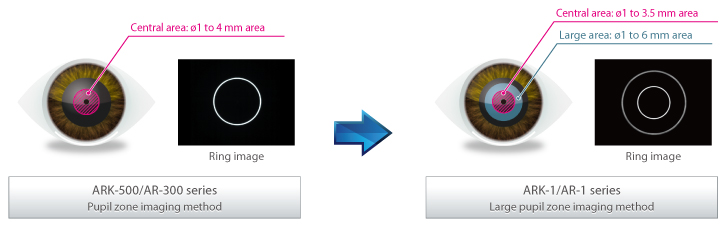

Large pupil zone imaging method

The large pupil zone imaging method enables the measurement of wider area refraction up to 6 mm diameter and can indicate the difference between the wide area refraction and central area refraction of up to 3.5 mm diameter.



SLD and highly sensitive CCD

The system, which combines the super luminescent diode (SLD) and highly sensitive CCD, significantly improves measurement capability even in dense cataractous eyes.



Optimal fogging to minimize accommodation

Fogging allows the patient to view the target clearly and minimizes the interference with accommodation even in high astigmatism.

Easy VA measurement with glare test

The ARK-1s and AR-1s provide visual acuity (VA) measurement. A glare source is illuminated beside the chart and the glare VA can be measured.





Simulated patient’s vision of VA chart and glare source



Vision with glare and halo

Normal vision
Simple opacity assessment with retroillumination image

The retroillumination image enables the observation of opacity of the optical media of the eye.

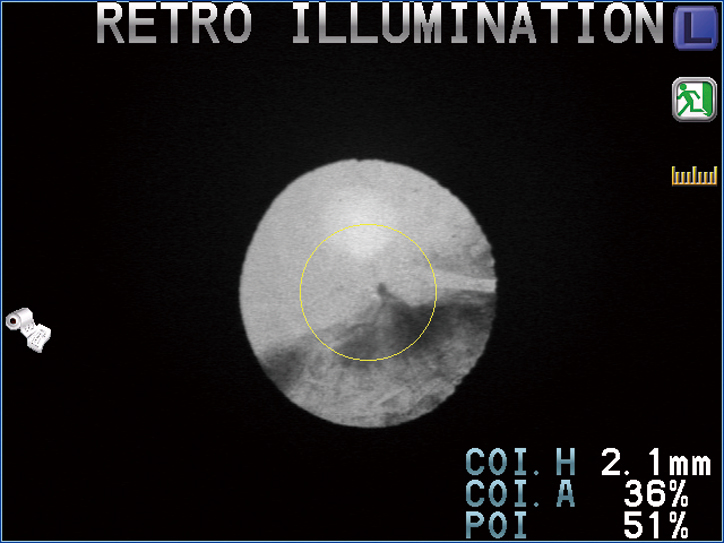

Eye with dense opacity

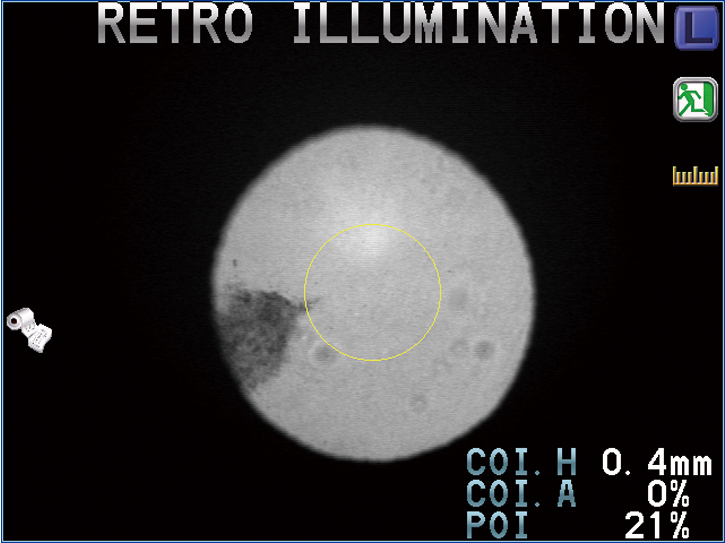

Eye with light opacity

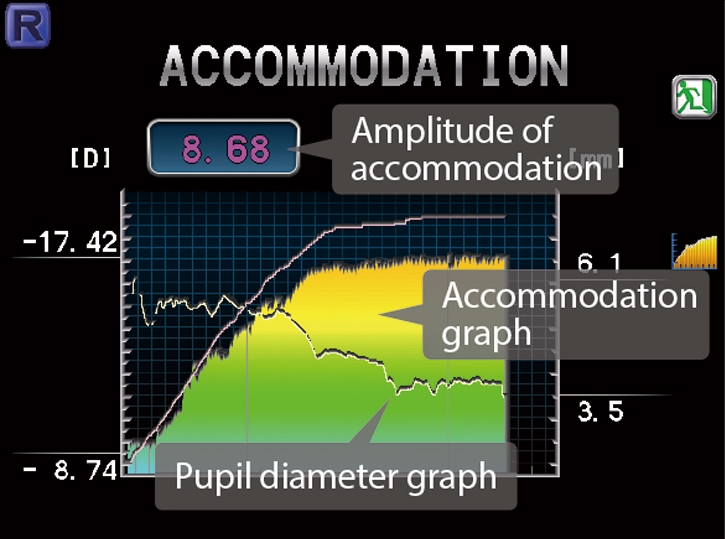

Patient-friendly accommodation measurement
Objective measurement of accommodation is performed with the patient focusing on a target that moves from distance to near.

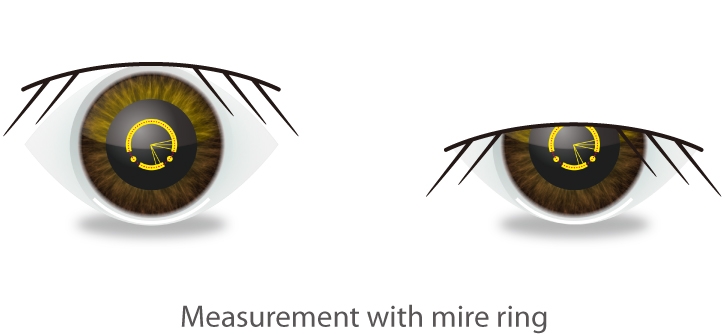

Keratometry measurement with mire ring
The mire ring is used to measure keratometry. It reduces eyelid artifacts.



Product/model name
AUTO REF/KERATOMETER ARK-1/ARK-1a/ARK-1s
Product / model name
AUTO REFRACTOMETER AR-1/AR-1a/AR-1s

Downloads

Brochure (PDF)

Videos

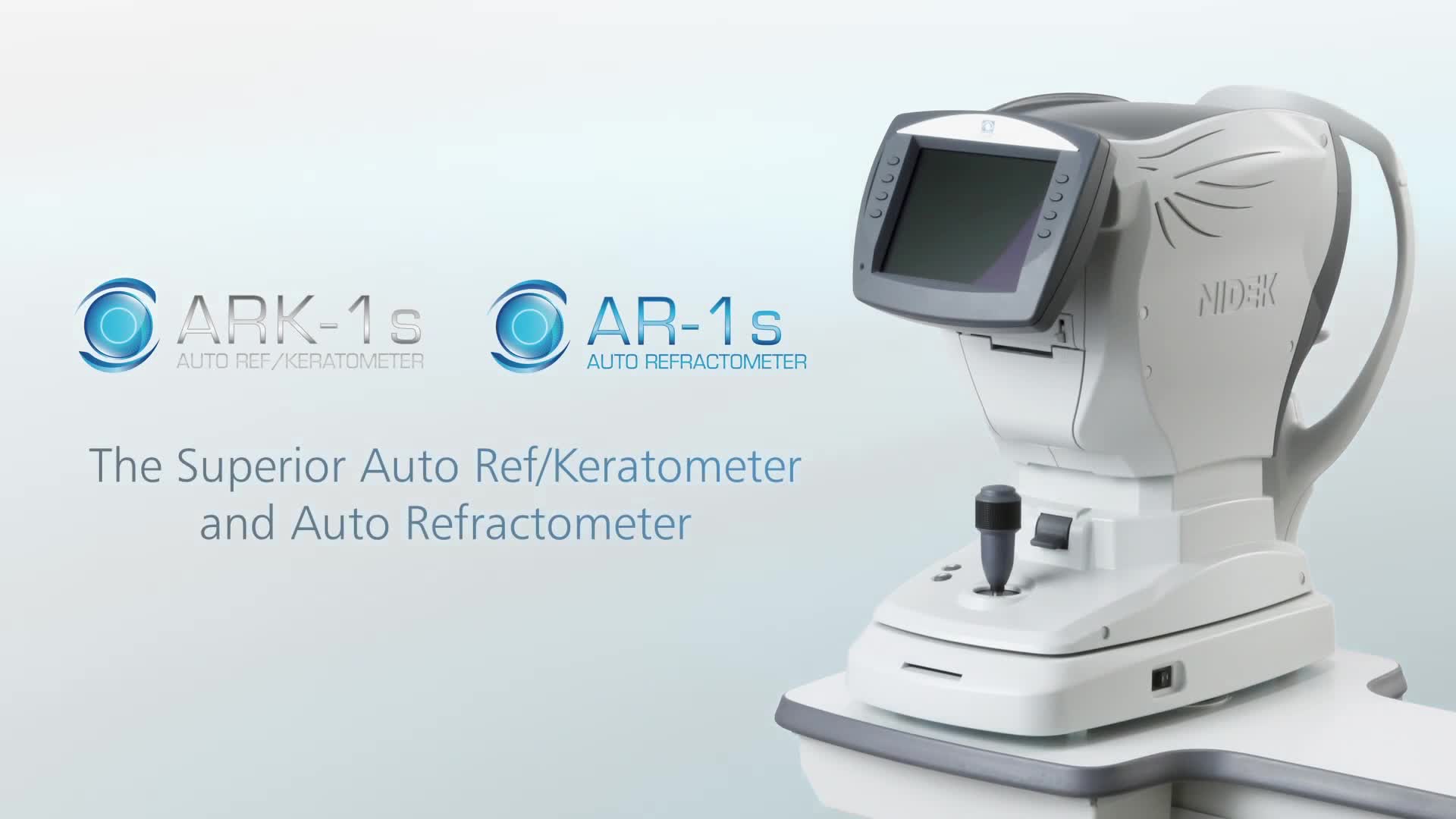

Product Introduction

NOTE

The availability of products differs from country to country depending on the status of approval.
Specifications and design are subject to change without notice.
