Anti Reflective Coating, "Lequa-Dry"
-High Grade AR Coating-
Anti-Reflective Coating with High Durability
Features
・Higher durability against UV and salt water spray than standard AR coating
・Anti-reflective coating produced by vacuum deposition method
・Applicable to Glass and PMMA
・Customizable spectral properties on request
Detailed Information
Physical Properties
| Item | Test condition | Results |
|---|---|---|
| Scratch Resistance | Steel wool #0000,1.5 kg, 5 strokes | 15 scratches or less |
| Pencil Hardness | JIS K5600-5-4（750 g load） | 4H |
| Water Contact Angle | θ/2 method | 105° or more |
| Adhesiveness | Crosshatch tape test (3 times) | Pass |
| Heat Resistance | 80℃, 1000 h | Pass |
| Humidity Resistance | 60℃, 95%RH, 1000 h | Pass |
| Salt Water Resistance | Salt water spray test per JIS Z2371, 28 days | Pass |
| UV Resistance | Super Xenon irradiation, BP=63℃, 500 h | Pass |
| Weathering Test | Underglass test, JIS Z2381, 180 days | Pass |
Substrate : Hard coated PMMA with 2 mm thick
* The data in the table are for reference, not guaranteed value.

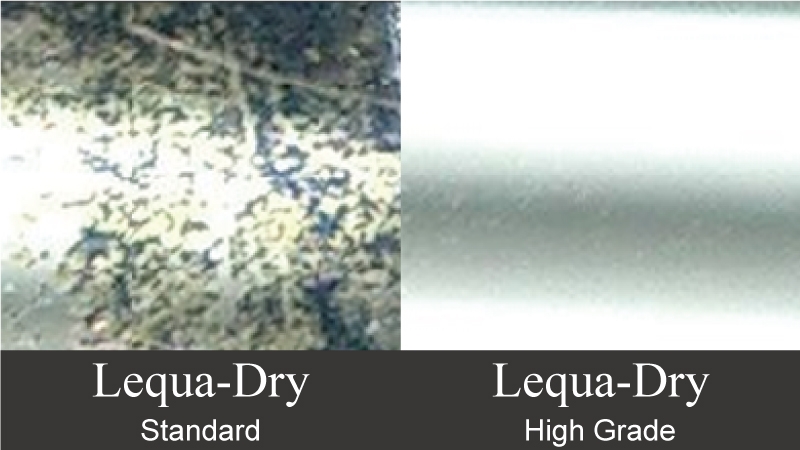

Salt water spray test :
|

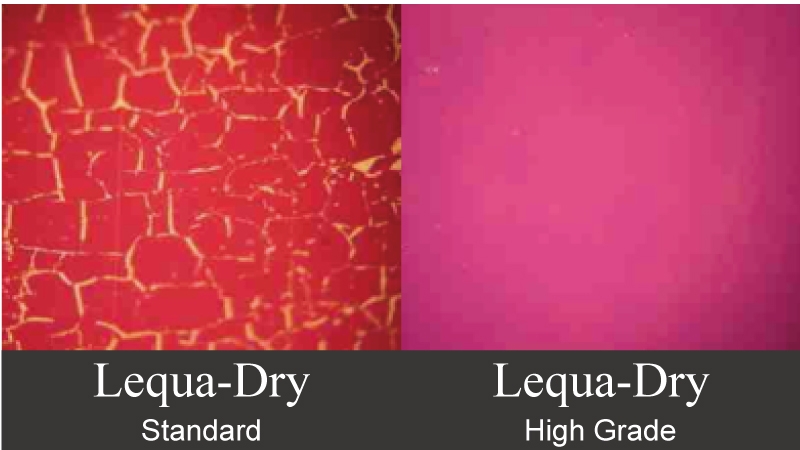

Outdoor exposure test :
|
Applications
 |
 |
･Fishfinder
･Combiner for HUD
*All the images used are for illustrative purpose only.
Brochure Request
For inquiries and brochure requests, please contact the following URL.
Related Products
Coating Method (Vacuum Deposition)
Introduce our coating technology simply. These coatings are applicable to plastics, glasses, etc., wide range of substrates.
Please consider applying our coatings on your own products.
Vacuum Deposition Method |
Principle of Vacuum Deposition
It is the same image that waterdrop is stuck on a lid when water in a pot is heated.
The phenomenon that water vapor is stuck is applied to the technology of vacuum deposition.
If the coating material were heated and vaporized by electric gun etc., the air would block the vaporized coating material from reaching to substrate.
To apply the vaporized coating material on substrate, the coating material is vaporized in the vacuum environment, and it is the vacuum deposition method.
Our products, Lequa-Dry and RefColor are applied by vacuum deposition method.
Coating Type (Anti Reflection Coating - AR Coating)
Introduce our coating technology simply. These coatings are applicable to plastics, glasses, etc., wide range of substrates.
Please consider applying our coatings on your own products.
Anti Reflection Coating (AR Coating) |
Principle of Anti Reflection Coating
Anti Reflection Coating is called as “AR Coating”.
It is the coating to reduce the reflection upon surface of plastic and glass by interference* of lights.
The suitable coating to each substrate and the customized coating to meet the requirement from customers are available.
*interference : phenomenon that light wave is enhanced and reduced each other by overlapping.
Anti reflection function occurs by offset of each wave of lights.
Examples of Anti reflection coating effect
