Optical Multilayer Coatings

Coating Surface Treatments with Thin Film Coating Optical Multilayer Coatings

Design coatings based on the requirements from customers

Features

・Coating for less wavelength shift by humidity with Ion Assist Deposition machine

Inquiry about This Product
Detailed Information

Detailed Information

Comparison of wavelength shift

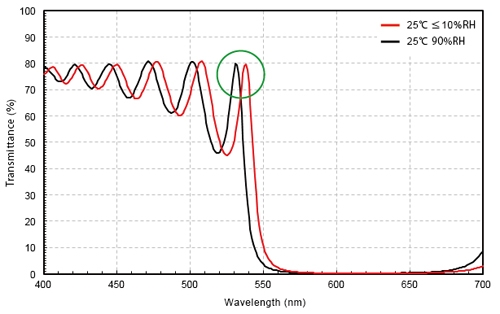

Standard type of vacuum evaporation coating

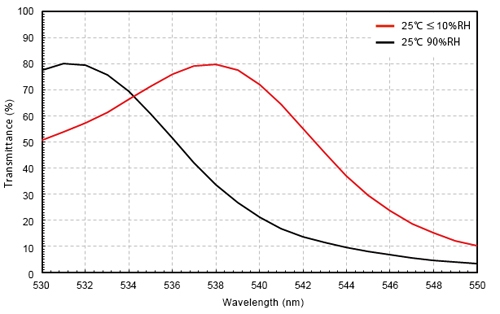

Standard type of vacuum evaporation coating (Enlarged data of above green circle)

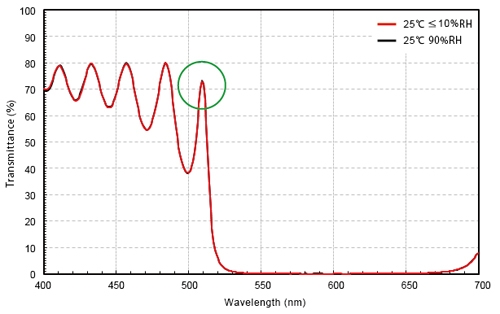

Ion assist deposition coating

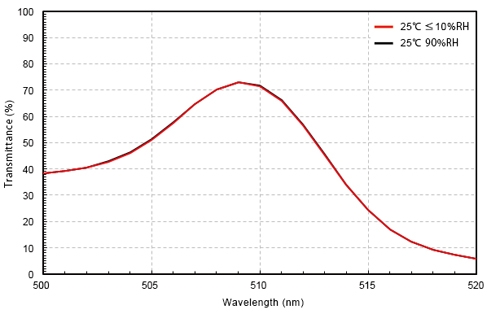

Ion assist deposition coating (Enlarged data of above green circle)

Optical property

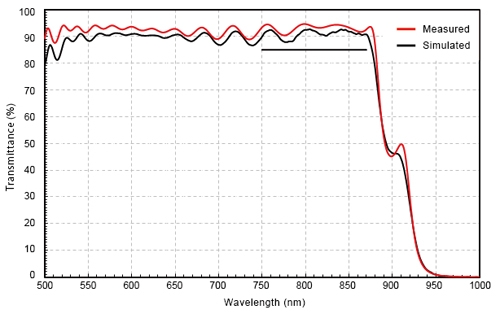

Short wave pass filter

Substrate S-BSL7
Optical Properties Angle of Incidence(AOI) = 45°
T≦ 85% @750-870 nm
T≧1% @960-1000 nm

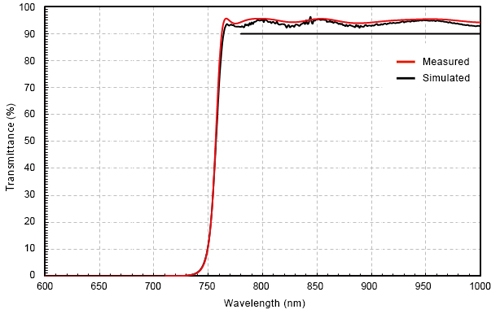

Long wave pass filter

Substrate Crown glass
Optical Properties Angle of Incidence(AOI) = 0°
T≦0.1% @600-710 nm
T≧90% @780-1000 nm

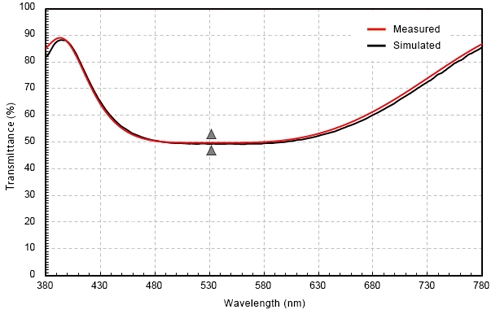

Half mirror

Substrate S-BSL7
Optical Properties Angle of Incidence(AOI) = 45°
Rp = 50 ± 3%
Tp = 50 ± 3% @532 nm

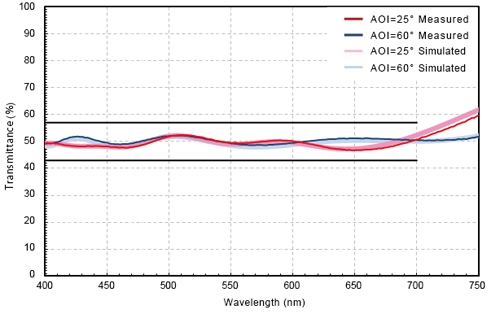

Polarizing half mirror

Substrate Crown glass
Optical Properties Angle of Incidence(AOI) = 25-60°
Rp = 50 ± 7%
Tp = 50 ± 7% @400-700 nm

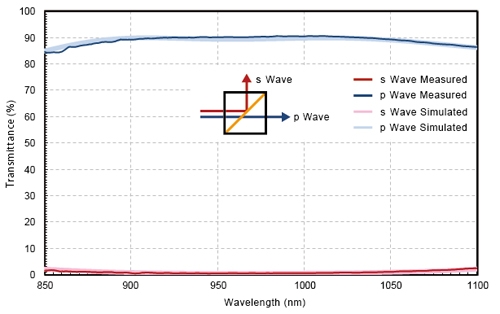

Polarizing beam splitter

Substrate S-BSL7
Optical Properties Angle of Incidence(AOI) = 45°
Tp≧85% @920-1020 nm
Ts≦2% @920-1020 nm

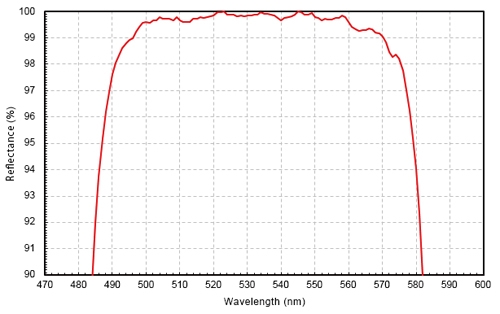

532 nm high power laser mirror

Damage threshold 154 J/cm2
Wavelength 532 nm
Pulse width 8 ns
Optical Properties Angle of Incidence(AOI) = 45°
Polarization P
Beam size X 264μm, Y 260μm (Gaussian 1/e2)
Evaluation method 1-on-1 (Gaussian peak)
