Decorative Coating, "RefColor"
-Decorative Mirror-
Transparent Mirror Coating by Customization of Spectral Reflectance
Features
・Mirror coating of dielectric multi-layer processed by vacuum deposition method
・Applicable to PMMA, PC, PET and various lens materials
・Customizable spectral reflectance and reflective color on request
・Applied with one of the largest continuous coating facility in the world
Detailed Information

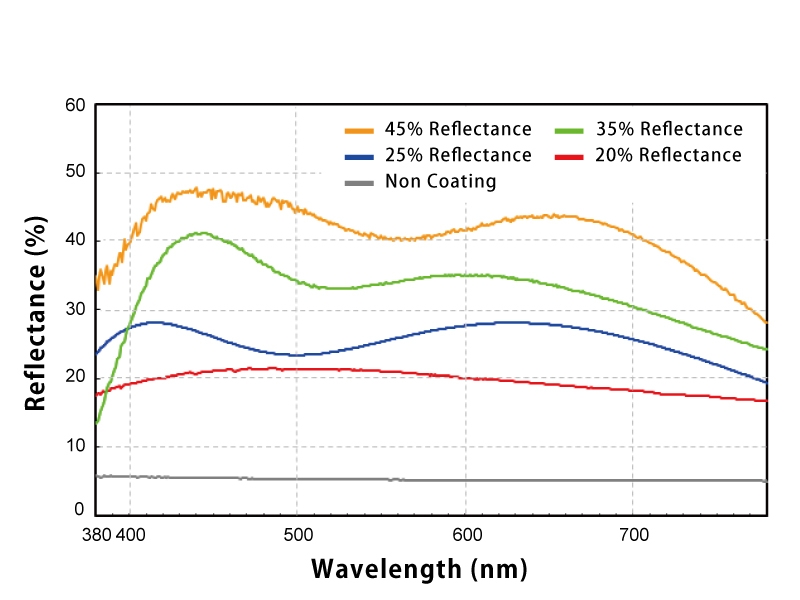

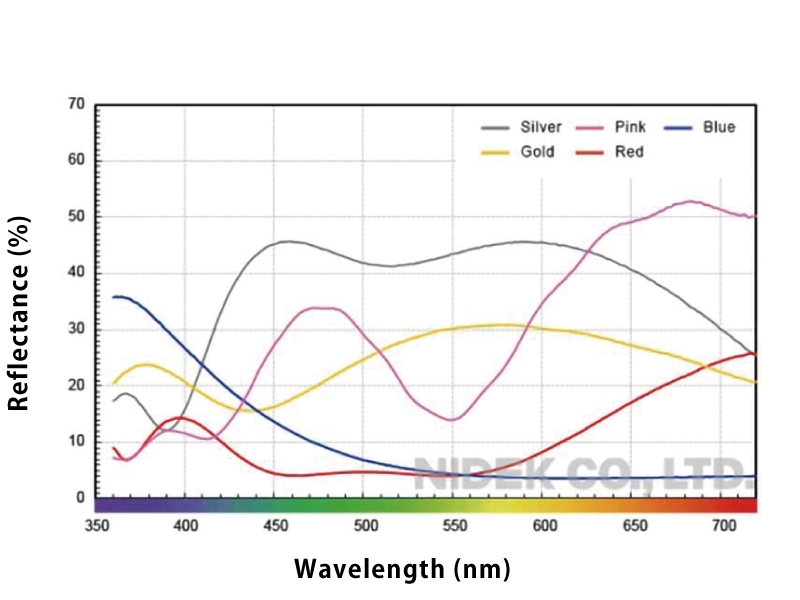

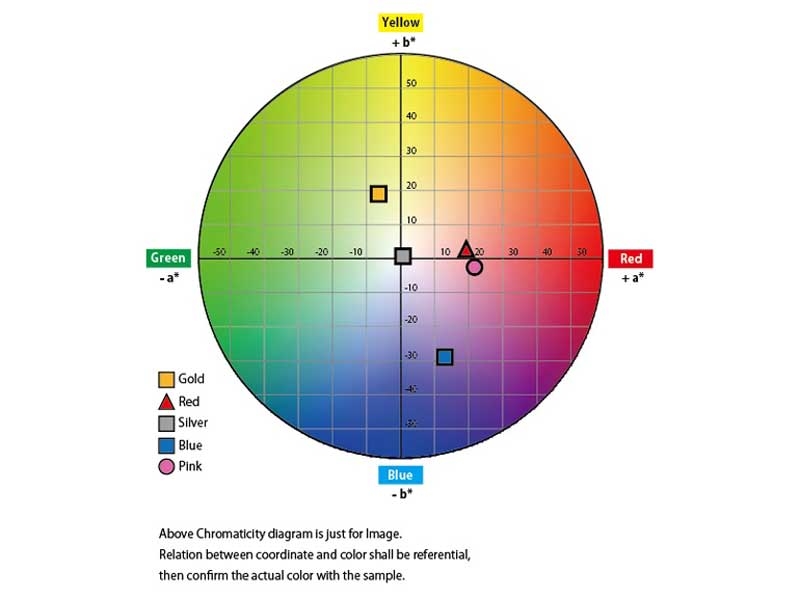

Optical Properties
Physical Properties
| Item | Test Condition | Result |
|---|---|---|
| Pencil Hardness | JIS-K5600-5-4 (750 g load) | HB |
| Adhesiveness | Crosshatch tape test (3 times) | Pass |
Substrate：Hard coated PC with 2 mm thick
*The data in the table are for reference, not guaranteed value.
Applications
- Combiner for Head-Up-Display
- Half mirror for display
- Decorative mirror for Mobile phone sub-panel

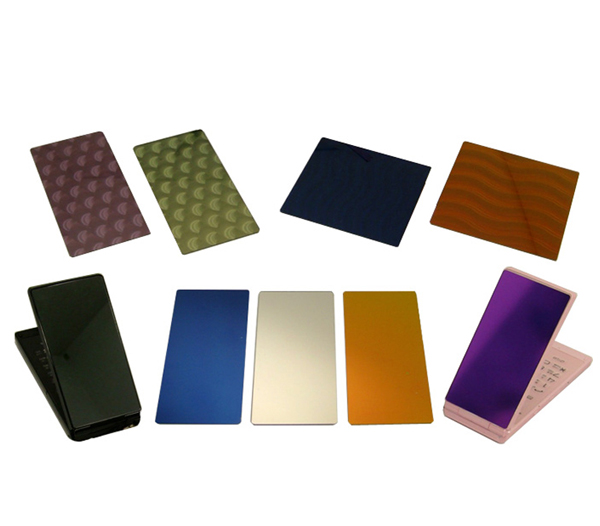

*All the images used are for illustrative purpose only.
Brochure Request
For inquiries and brochure requests, please contact the following URL.
Related Products
Coating Type (Anti Reflection Coating - AR Coating)
Introduce our coating technology simply. These coatings are applicable to plastics, glasses, etc., wide range of substrates.
Please consider applying our coatings on your own products.
Dielectric Mirror Coating |

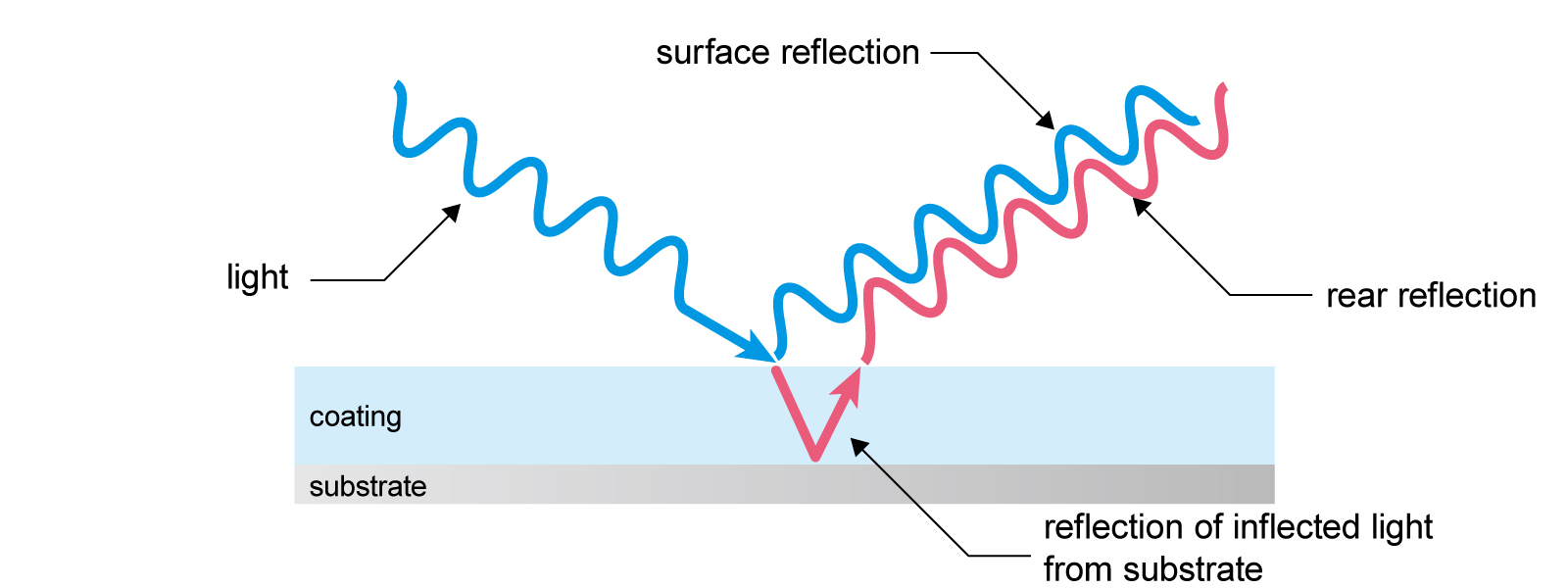

Principal of Dielectric Mirror Coating
Mirror coating applies the light interference as in Anti Reflection coating.
Dielectric mirror coating can achieve the shinny texture by amplifying the light reflection by overlapping of light waves,
whereas anti reflection coating has effect to reduce the reflection by offsetting the light waves.
Amplify two waves on particular wavelength
Characteristic of Dielectric Mirror Coating
Dielectric mirror coating can realize the shiny texture on various colors by controlling the coating layers and thickness of each layer.
As one of the characteristics, our coating does not cause radio disturbance by going through the radiowave and electromagnetic wave differently from metal coating. Recently the mobile wireless communication devices are diversified. In addition to the mobile phone function, various functions such as e-mail, electronic money, GPS, infrared communication and wireless LAN system are incorporated, and all of those functions use radiowave and electromagnetic wave. Dielectric mirror coating which does not cause the radio disturbance is suitable for mobile wireless system.

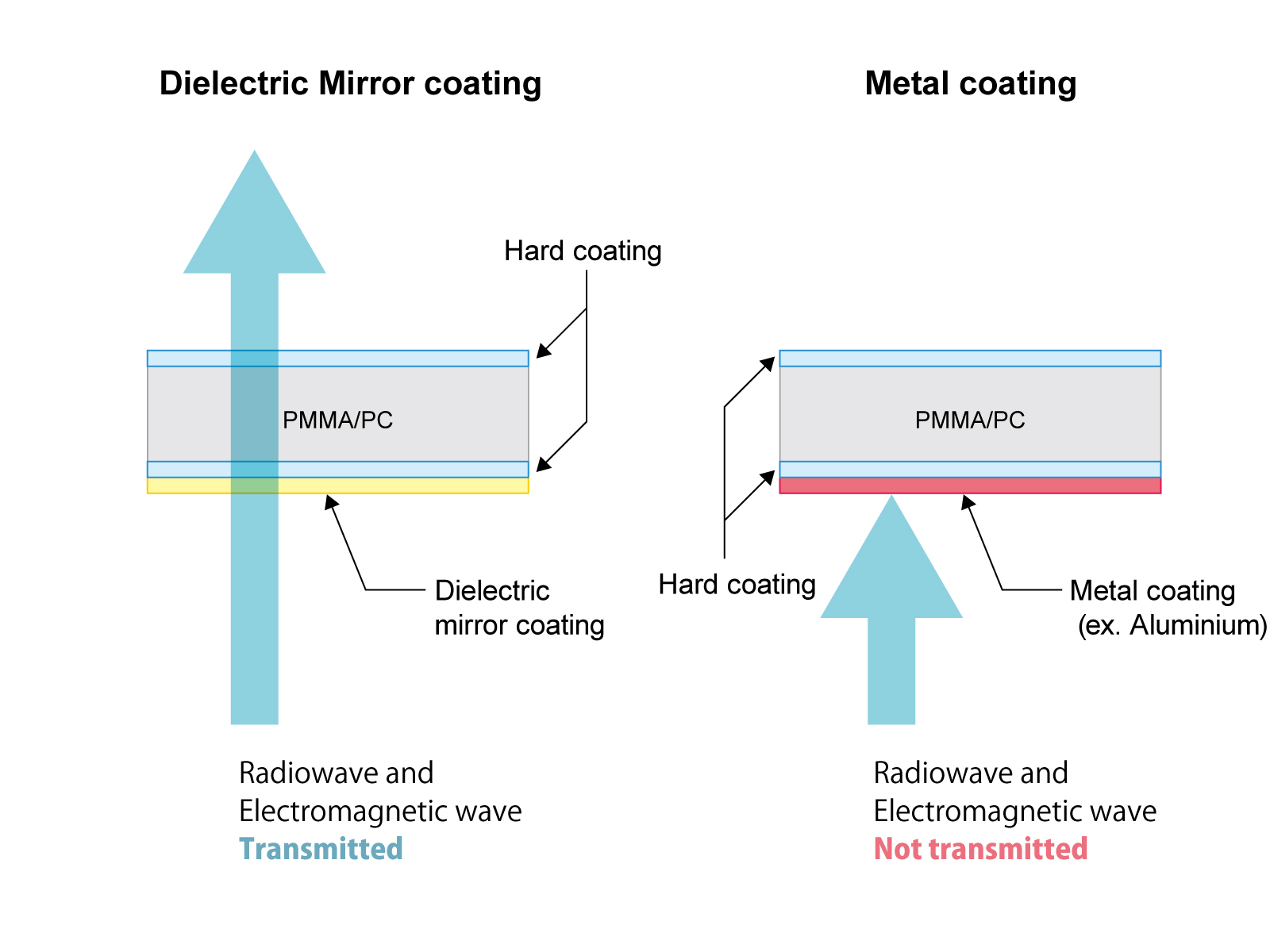

Transmission characteristics of Radiowave and Electromagnetic wave
